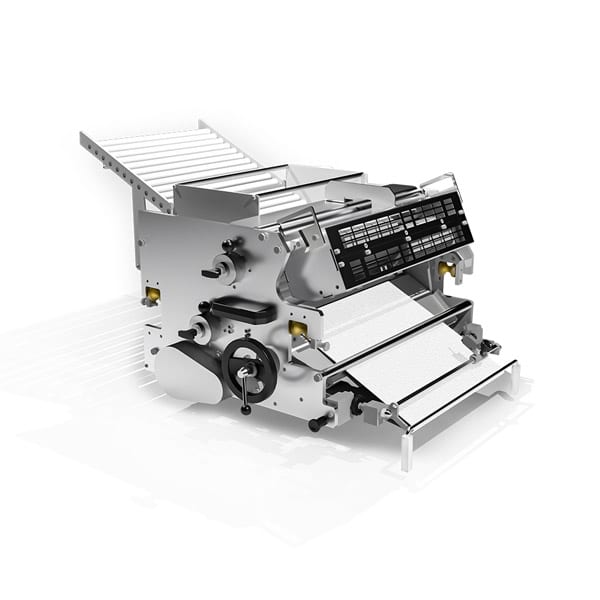

Our compact universal cookie depositor is a machine for the production of a wide range of biscuits and cookies. Thanks to its modular design, it can be purchased in a basic version with two cookie dough tanks and can then be upgraded when needed. This, along with its small footprint and affordable price, makes it a great option for small and medium bakeries as well as for startups who just need a basic machine now and can upgrade it as their needs grow. Depending on the equipment and additional functions, this depositor can produce simple patterns and demanding, customized shapes.

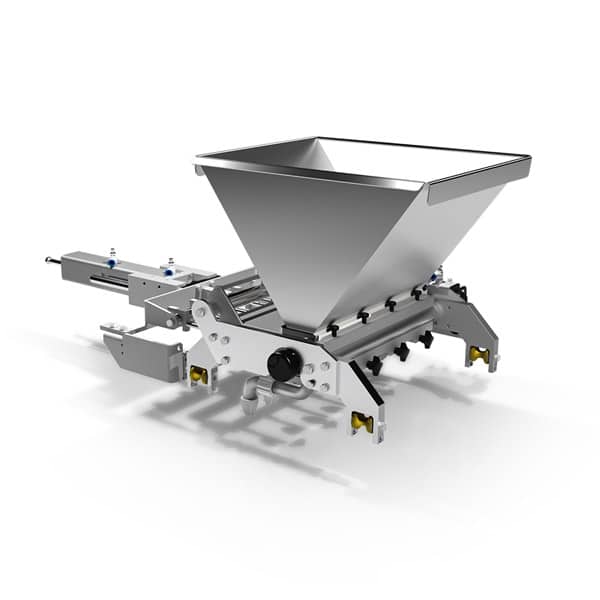

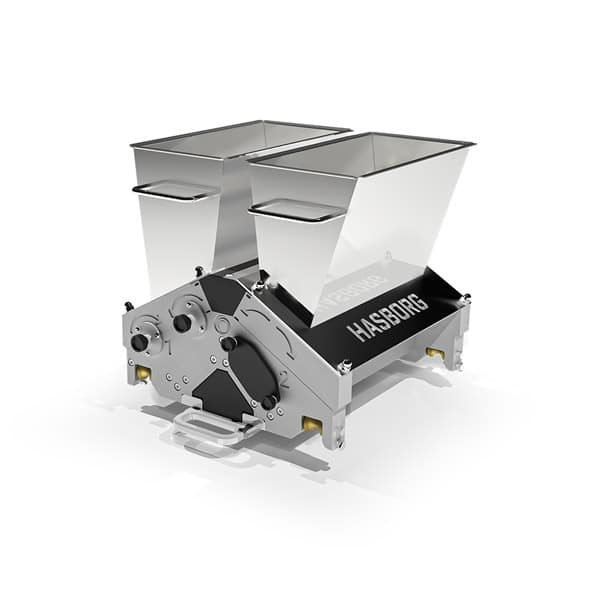

The MAX universal cookie depositor in its basic configuration is equipped with two tanks for dough (e.g. two colors) or dough and filling. This set includes forming slat with nozzle rotation for two-color extruded biscuits and one-color biscuits with filling, equipped with 6 nozzles. Thanks to a wide selection of forming attachments (plastic and brass), it can produce cookies of various shapes and textures. In addition, it is possible to create new patterns according to the customer’s needs. Manual solution with table “on stripes” works with baking trays with a width of 400 mm and a length of 400 mm to 800 mm.
The machine head is made of a single piece of material, which ensures proper stability during operation. The dough, thanks to properly designed channels in the head, does not encounter obstacles blocking the flow of the dough. The rollers used with an increased diameter of 115 mm with longitudinal cuts and adjustable rotation allow for work at a lower speed, thanks to which there is no effect of “pulling” the dough. The special shape of the channels in the slats mounted in the head reduces the pressure in the head, thanks to which the dough passes precisely to the forming nozzles and ensures the repeatability of the final product.
The machine uses an eccentric head lifting system (no lubrication required), with digital regulation of lifting and lowering (for the production of biscuits of different heights).
A significant part of the safety covers is made of transparent material, which, in addition to the basic function related to maintaining safety, facilitates the control of the production process and gives the machine a visual “lightness”.
The control is provided by a convenient, movable LCD panel, equipped with a multilingual user interface, with the ability to save settings and recipes, as well as allowing remote machine diagnostics and parameter control via WiFi network.
The machine is made of certified stainless steel AISI 304, the construction ensures high stability, and the materials and all components used, from mechanical parts, through gears, servo drives, to control systems, allow the machine to work continuously with high efficiency.
The MAX universal cookie depositor meets all European safety and energy efficiency standards.
Make sure to also check out our Duomax M400 compact cookie dough depositor as well as our countertop Baby Maxdrop 400 portable cookie dough depositor.
